Botwürx Cinema  Robot

Controlled with Camerabotics Lensmasters.

SERIES 6 SPECS

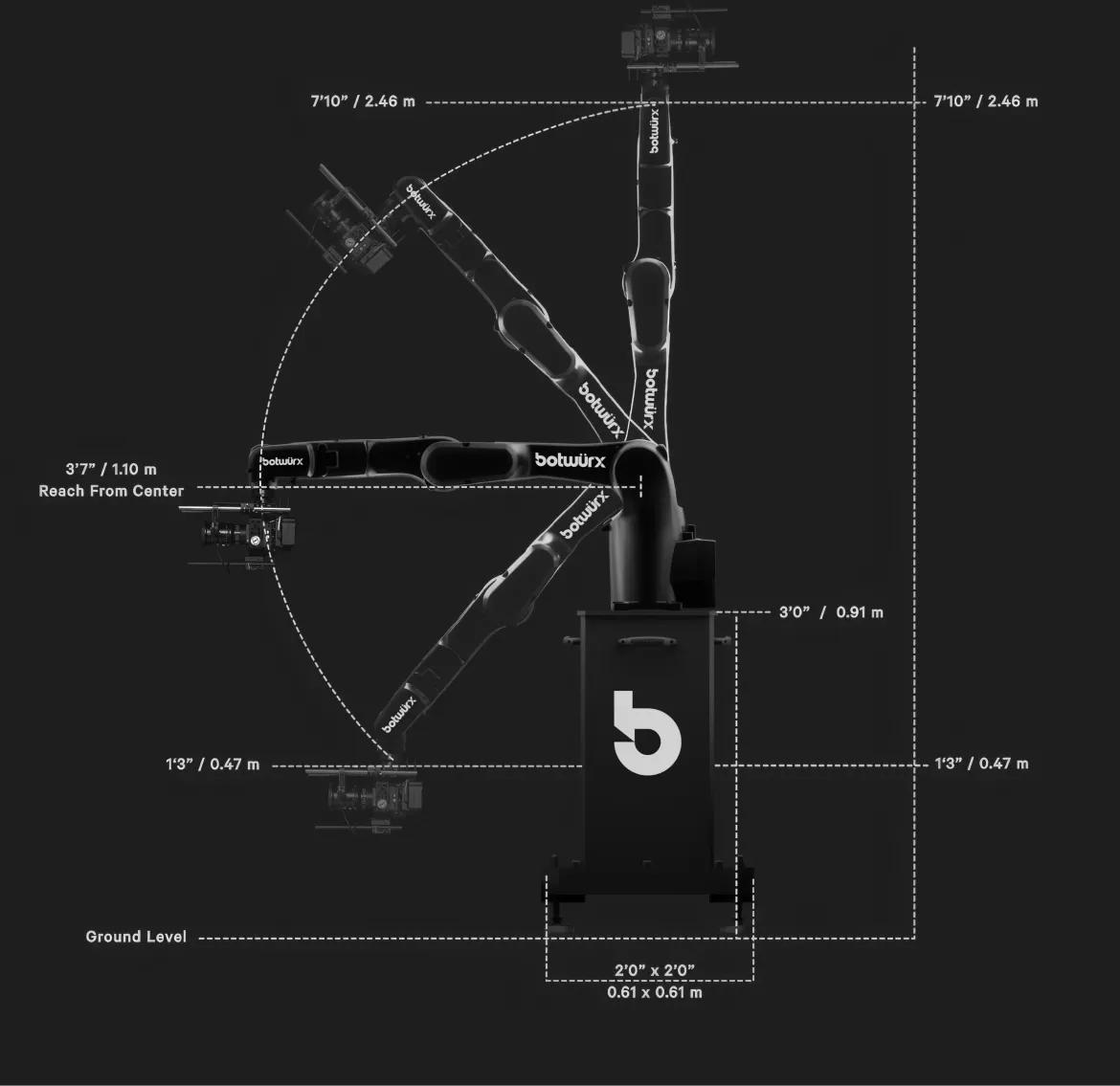

Size and Weight
Base Height: 3’
Base Width: 2’
Base Length: 2’
Arm Reach: 3’8”
Max Height: 7’10”
Weight: 800lb

Robot Arm
Length: 3’8”
Maximum Payload: 22lbs
Weight: 120lbs

Power Requirements
Single Phase. 230v-20 amp or 110 volt house power with provided step up transformer

Shooting Speed
Vertical Move: 10.50 feet/second
Horizontal Move: 10.50 feet/second

Movement
Axis 1: ± 170°
Axis 2: +45°/-190°
Axis 3: +156°/-120°
Axis 4: ± 185°
Axis 5: ± 120°
Axis 6: Infinite

Robot Axis Speed
Axis 1: 300° per second
Axis 2: 225° per second
Axis 3: 225°per second
Axis 4: 381° per second
Axis 5: 311° per second
Axis 6: 492° per second

COMPACT SIZE BIG IMPACT

Our Series 6 cinema robot is capable of executing complex, high-speed camera movements, meticulously designed to capture the perfect shot. Its compact design makes it an excellent choice for studio environments and an ideal option for on-location shoots.

Powered by lensmaster

Lensmaster is our cutting-edge motion control software meticulously designed for Cinema Robotics. With its powerful and intuitive real-time interface, Lensmaster offers an unmatched level of flexibility and a multitude of advanced features, allowing you to channel our full creative energy into design and innovation.
